Ymir Controller Quick Guide

Ymir Controller Quick Guide

Before you get started, don't hesitate to email us at gamepad@ioubang.com if you have questions or troubles.

Quick Navigation

Connection

Wireless Connection

To PS4/PS5 Console

First-Time Connection:

1. Turn on your PS4 or PS5 console and connect the controller to the console using the included USB-C cable.
2. Press the "PS" button on the controller to initiate the connection.
3. Once the connection is successful, unplug the USB cable.
4. Press the "PS" button to connect to the console wirelessly.

Re-Connection:

Simply press the "PS" button on the controller, and it will automatically reconnect to the console.

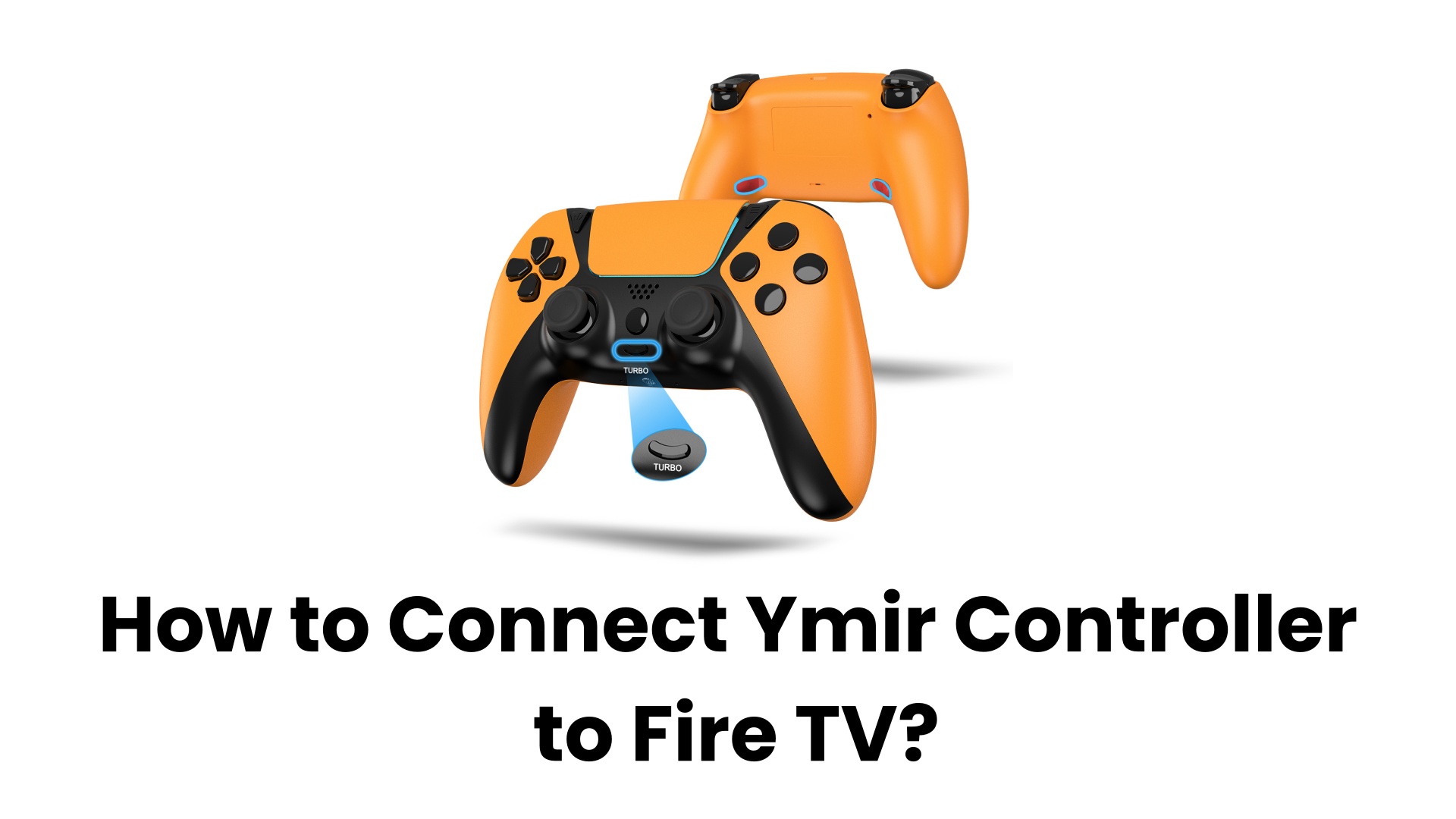

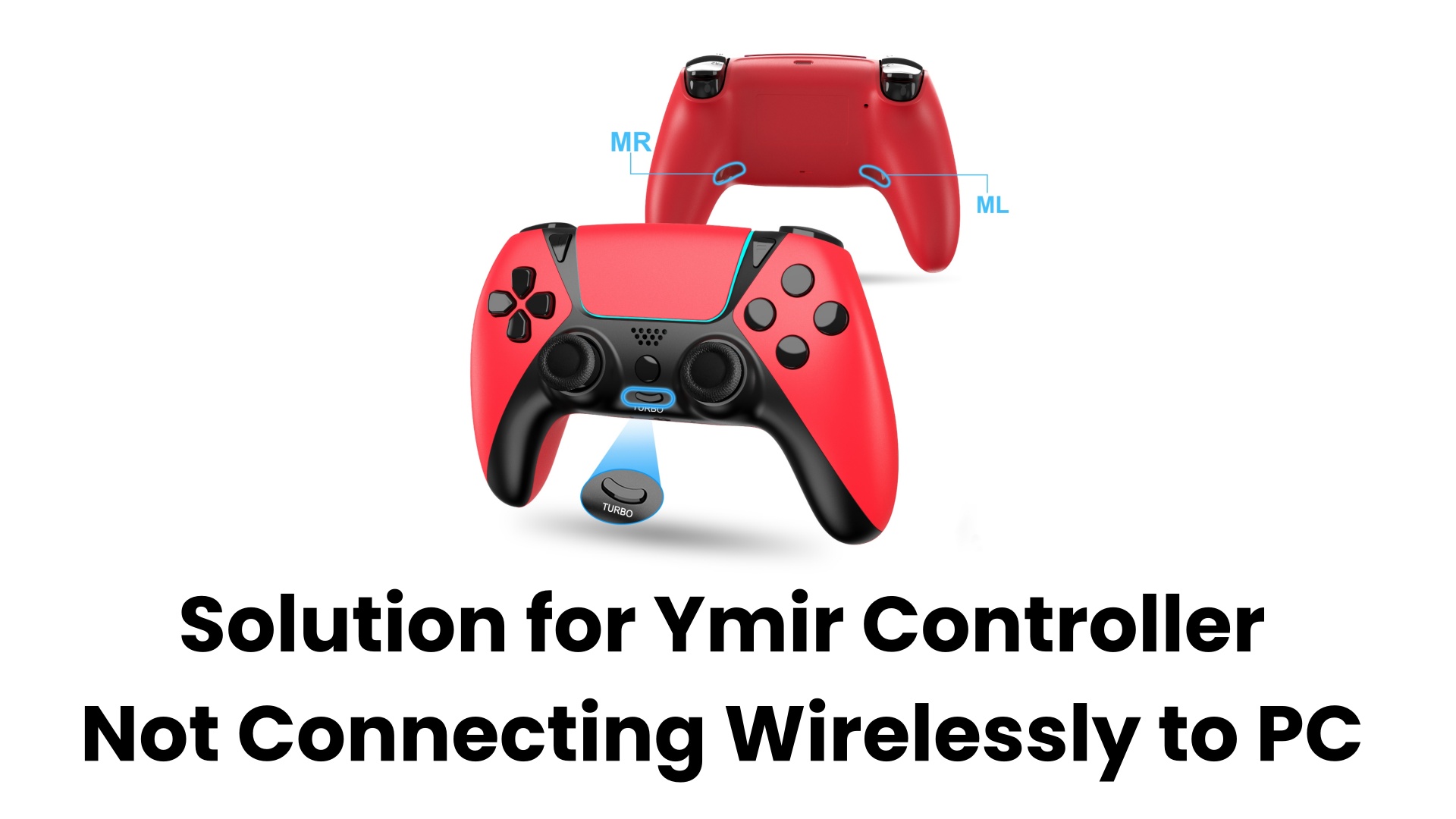

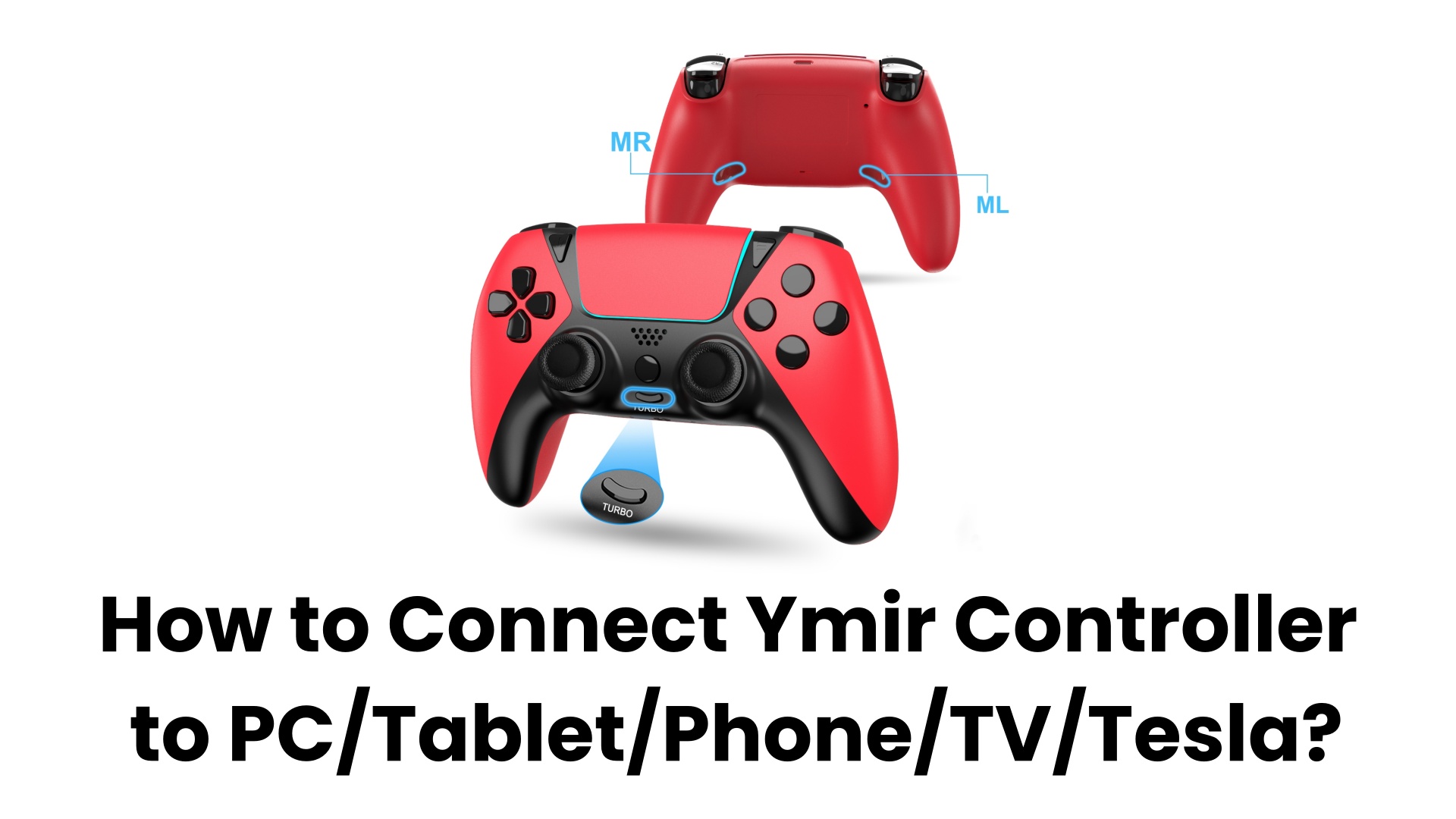

To PC/Steam/Phone/Tablet/TV/Tesla

First-Time Connection:

1. Turn on Bluetooth on your device.
2. Press and hold the "Share" and "PS" buttons simultaneously for about 10 seconds until the RGB light flashes at a steady frequency.
3. Locate and select the device named "Wireless Controller" to pair.

Re-Connection:

Simply press the "PS" button on the controller, and it will automatically reconnect to your device

Wired Connection

Connect the controller to the device using the included USB-C cable. The device will automatically recognize the controller.

Macro Programming Setting

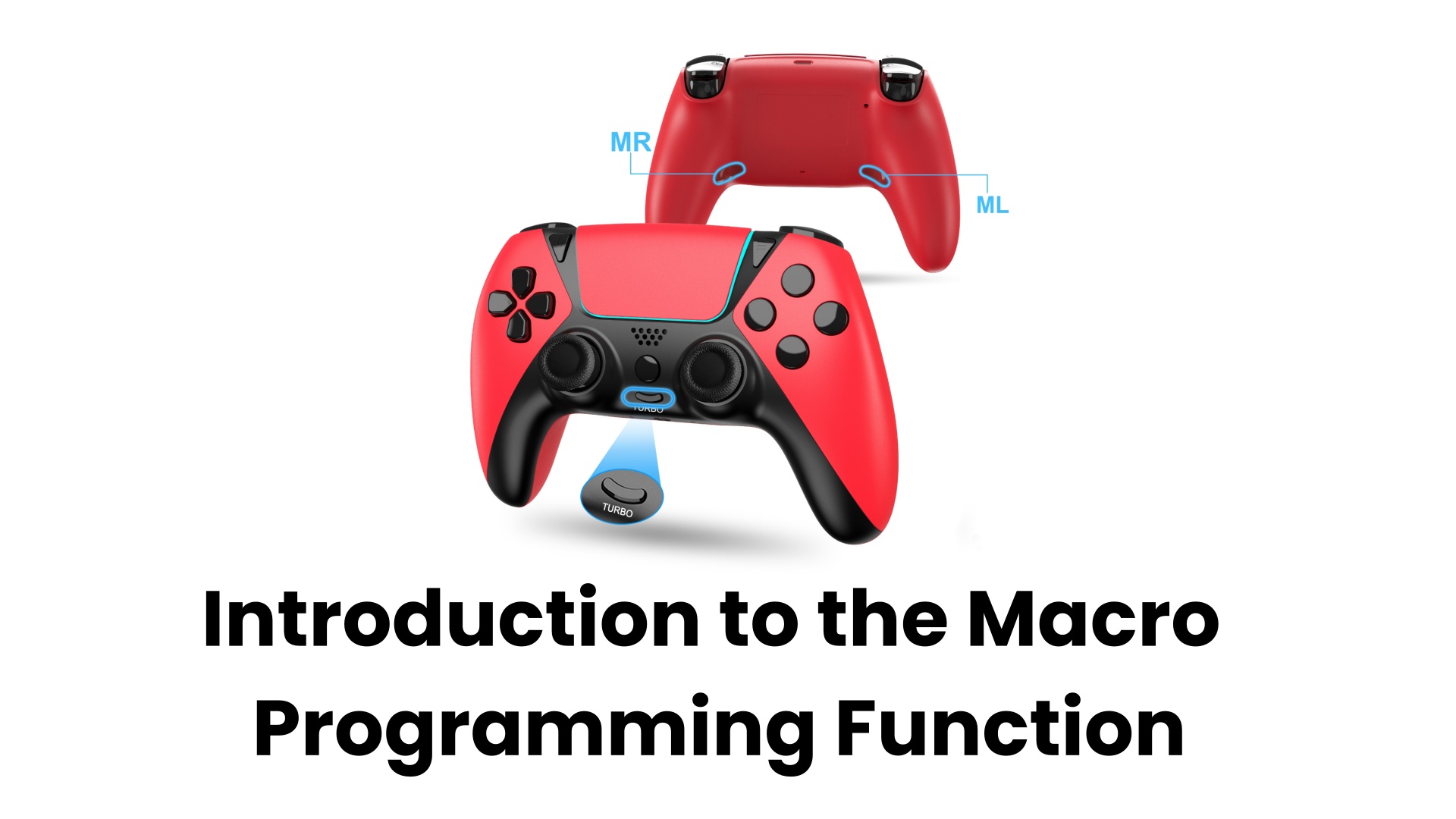

About Macro Programming Function

Our Ymir1 controller features a macro mapping function. On the one hand, you can bind a single button to the back paddles. On the other hand, you can also bind combinations of more than two buttons to the back paddles simultaneously. For example, in the game "The King of Fighters," we need to press "→" and "X" buttons at the same time to trigger the Orochinagi move. Therefore, we can bind both of these buttons to one of the back paddles.

How to Set up Macro Programming Function?

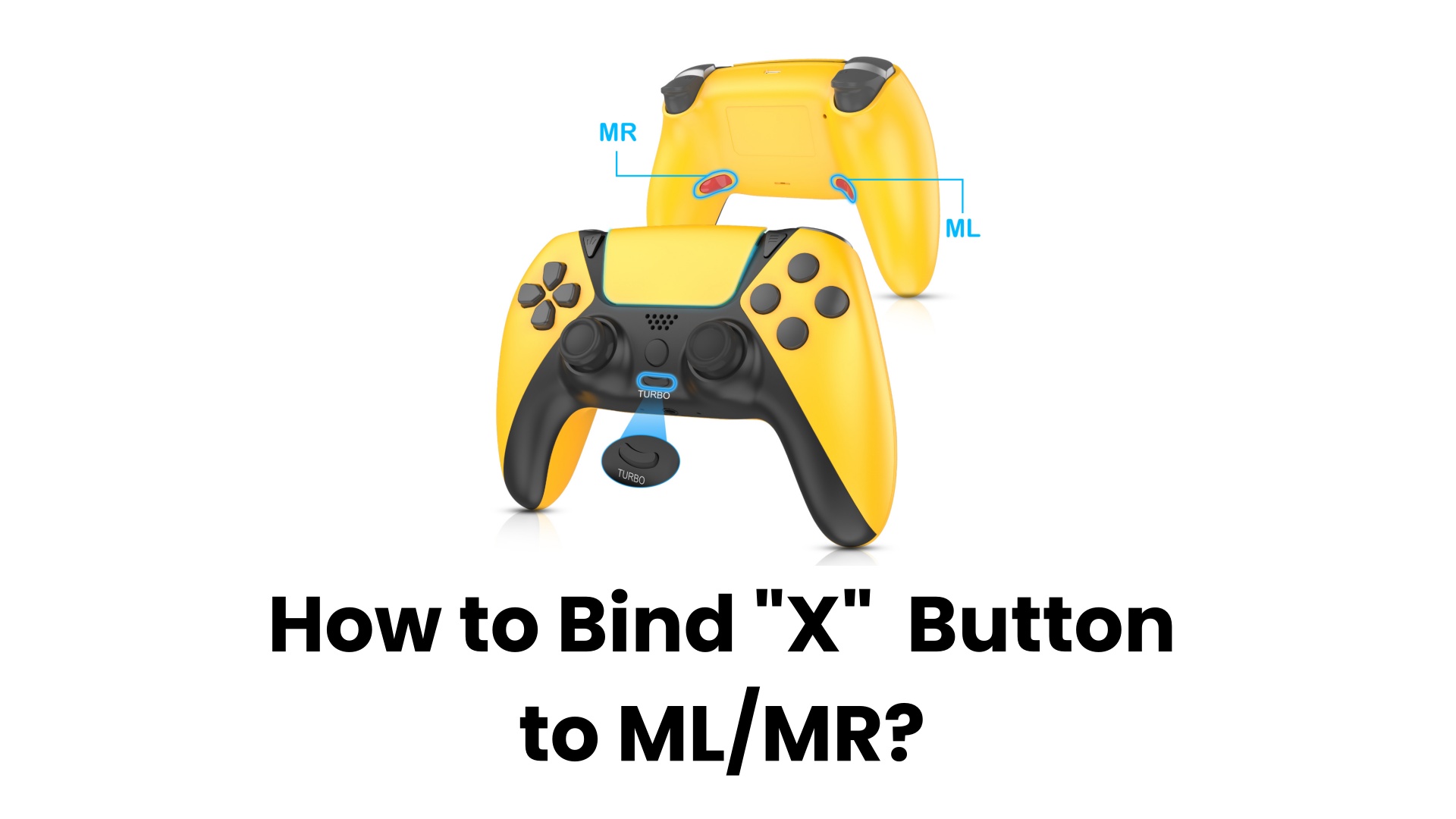

Bind a Single Button

1. Hold down the "Turbo" button and either the "MR" or "ML" button simultaneously for 5 seconds until the RGB light flashes.
2. Press the function button that you want to bind. The RGB light will flash.
3. Press the "MR" button to confirm. The RGB light will flash.
(Note: Make sure to press "MR" for confirmation, not "ML," even if you are binding the button to "ML")
4. Press the "Turbo" button, and the RGB light will flash.

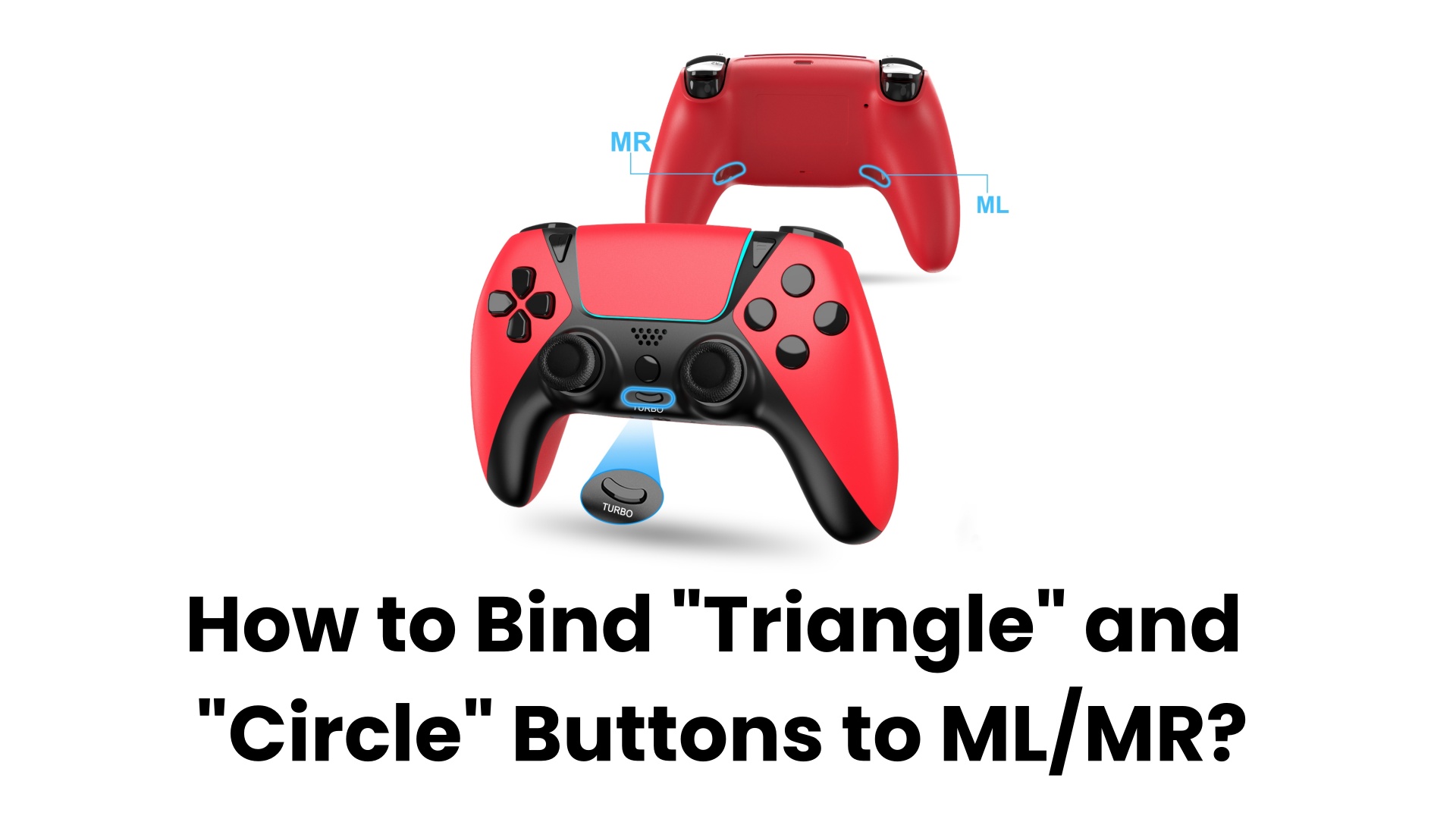

Bind a Combination of Two or More Buttons

1. Long press the "Turbo" button and either the "ML" or "MR" button simultaneously for 5 seconds until the RGB light flashes.
2. Press the combination of buttons you want to bind. The RGB light will flash with each button press.
3. Press the "MR" button to confirm the buttons you've pressed, the RGB light will flash.
(Note: Make sure to press "MR" for confirmation, not "ML," even if you are binding the button to "ML")
4. You can repeat steps 2 and 3 to set multiple button sequences if needed.
5. Press the "Turbo" button, and the RGB light will flash to confirm the macro.

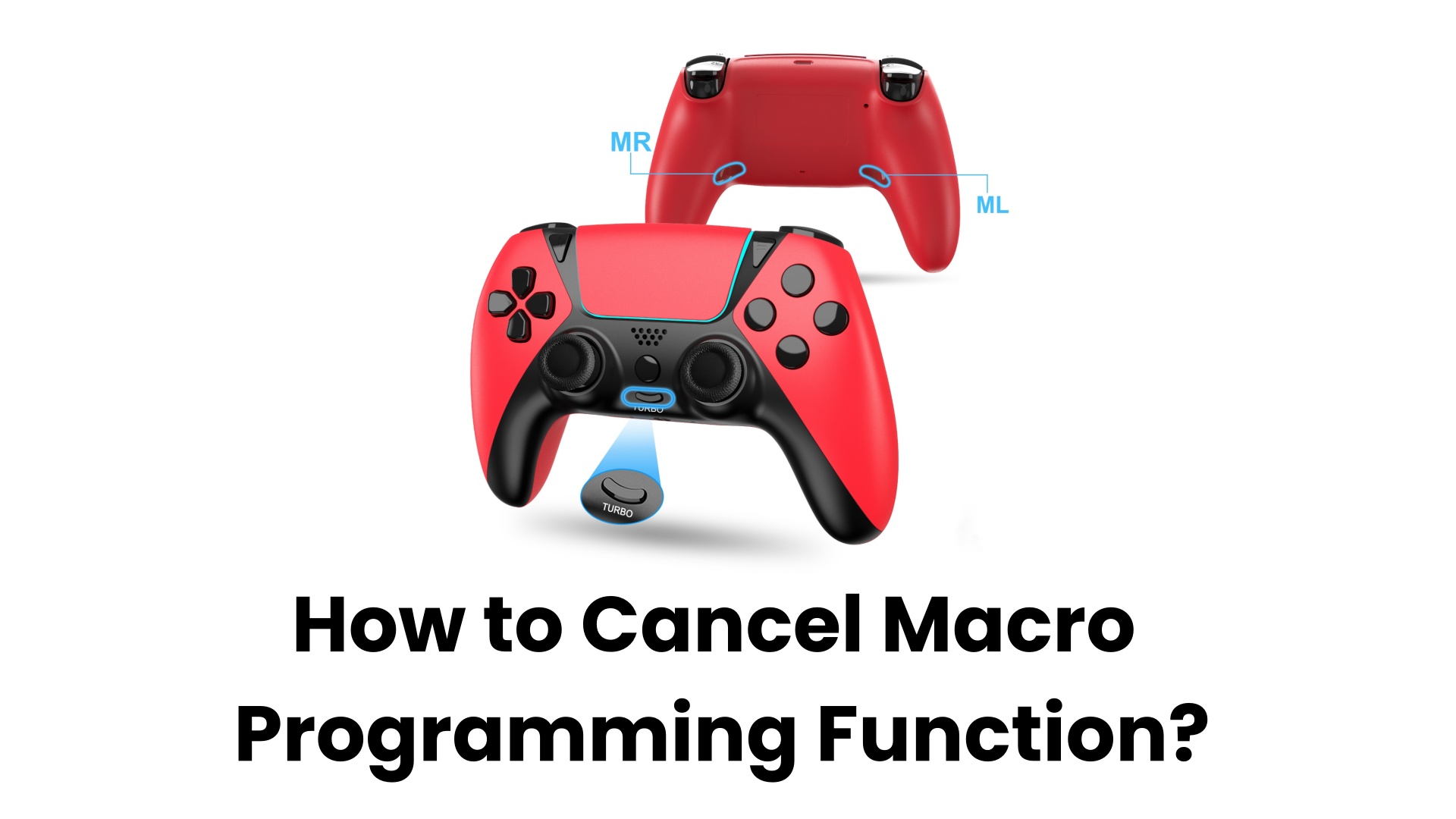

How to Cancel Macro Programming Function?

Press and hold the "Turbo" button and either the "ML" or "MR" button until the RGB light flashes. Keep holding until the light stops flashing.

Friendly Reminder

If you do not cancel the macro programming setting, it will remain active for future gameplay. To avoid unintended functions, please press and hold the "Turbo" button until the light flashes. This will cancel all previously set functions.

Turbo Setting

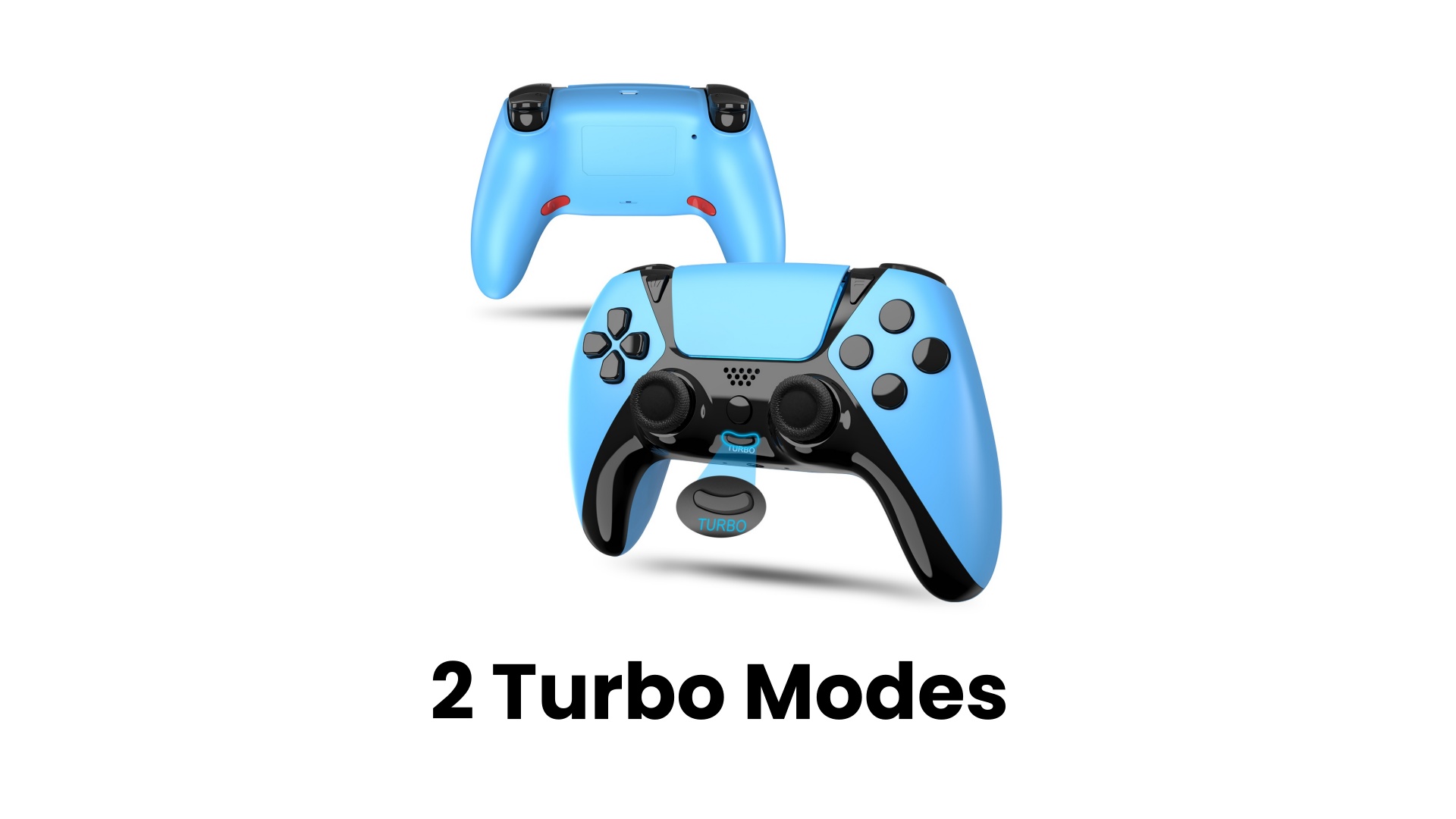

Two Turbo Modes

Manual Turbo Mode

Manual Turbo Mode enables continuous actions by holding down a single button. Once set up, pressing and holding a function button will continuously trigger the corresponding attack action. Releasing the button will stop the action in the game immediately.

Automatic Turbo Mode

Unlike Manual Turbo, where players must hold down the button, the Automatic Turbo function, once it is successfully set up, allows the attack action to trigger continuously without the need to hold the button.

How to Set Up Turbo Function?

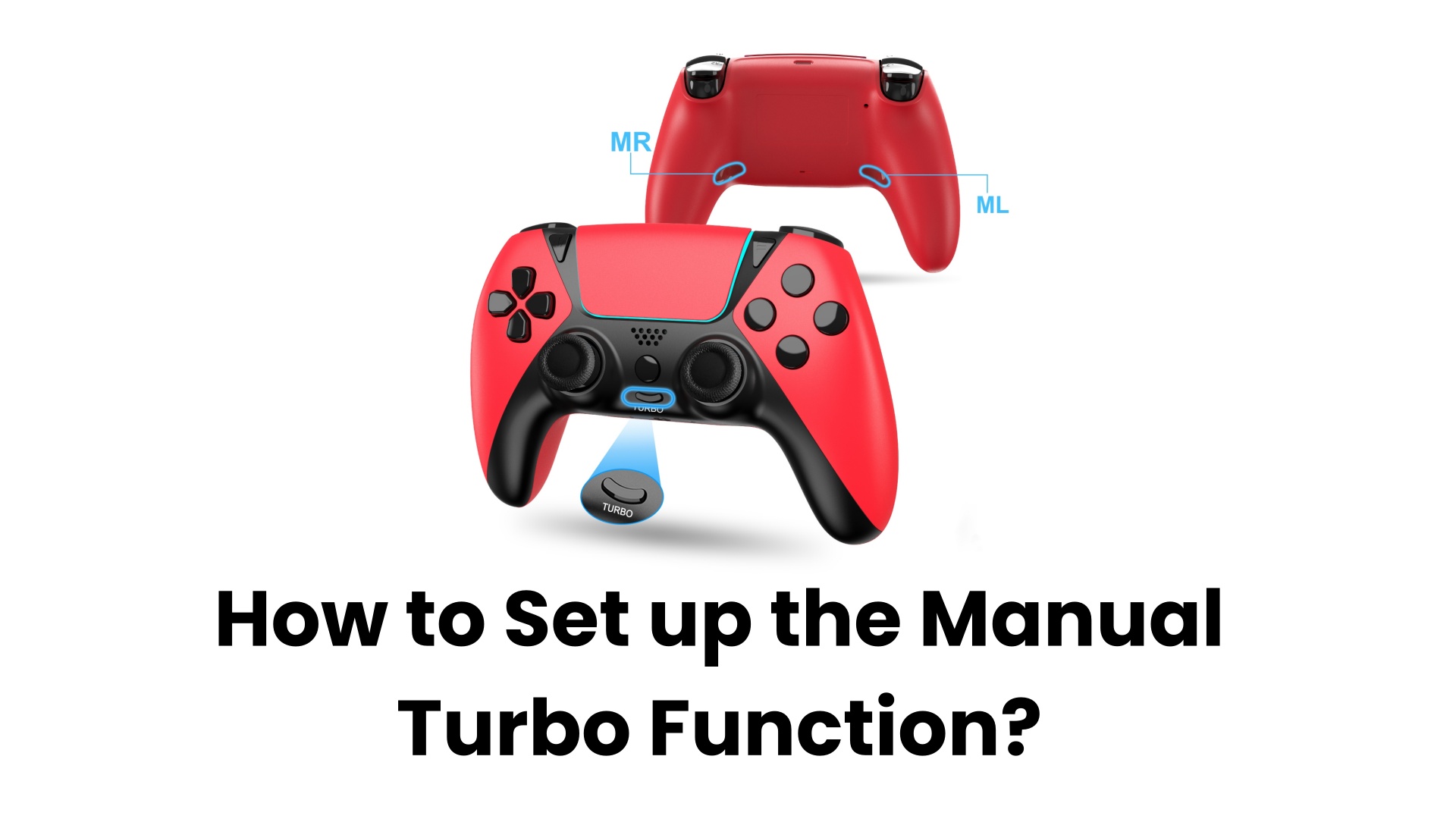

Set Up Manual Turbo Function

Hold the "Turbo" button, don t release it, and then press the target function button. The RGB light will flash.

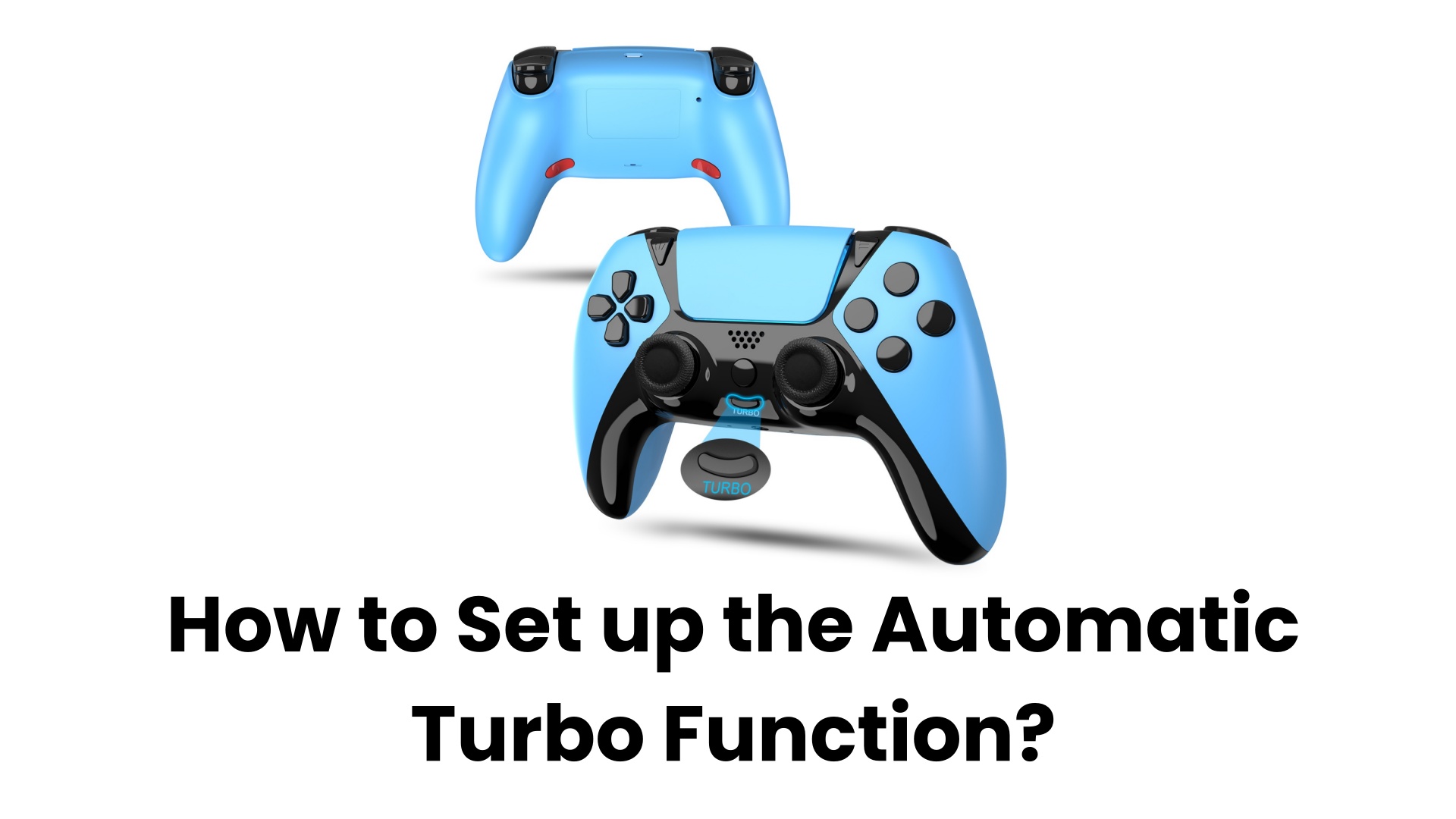

Set Up Automatic Turbo Function

1. Hold the "Turbo" button, don t release it, and then press the target function button. The RGB light will flash.
2. Repeat: Hold the "Turbo" button again, don t release it, and then press the target function button. The RGB light will flash.

How to Cancel Turbo Function?

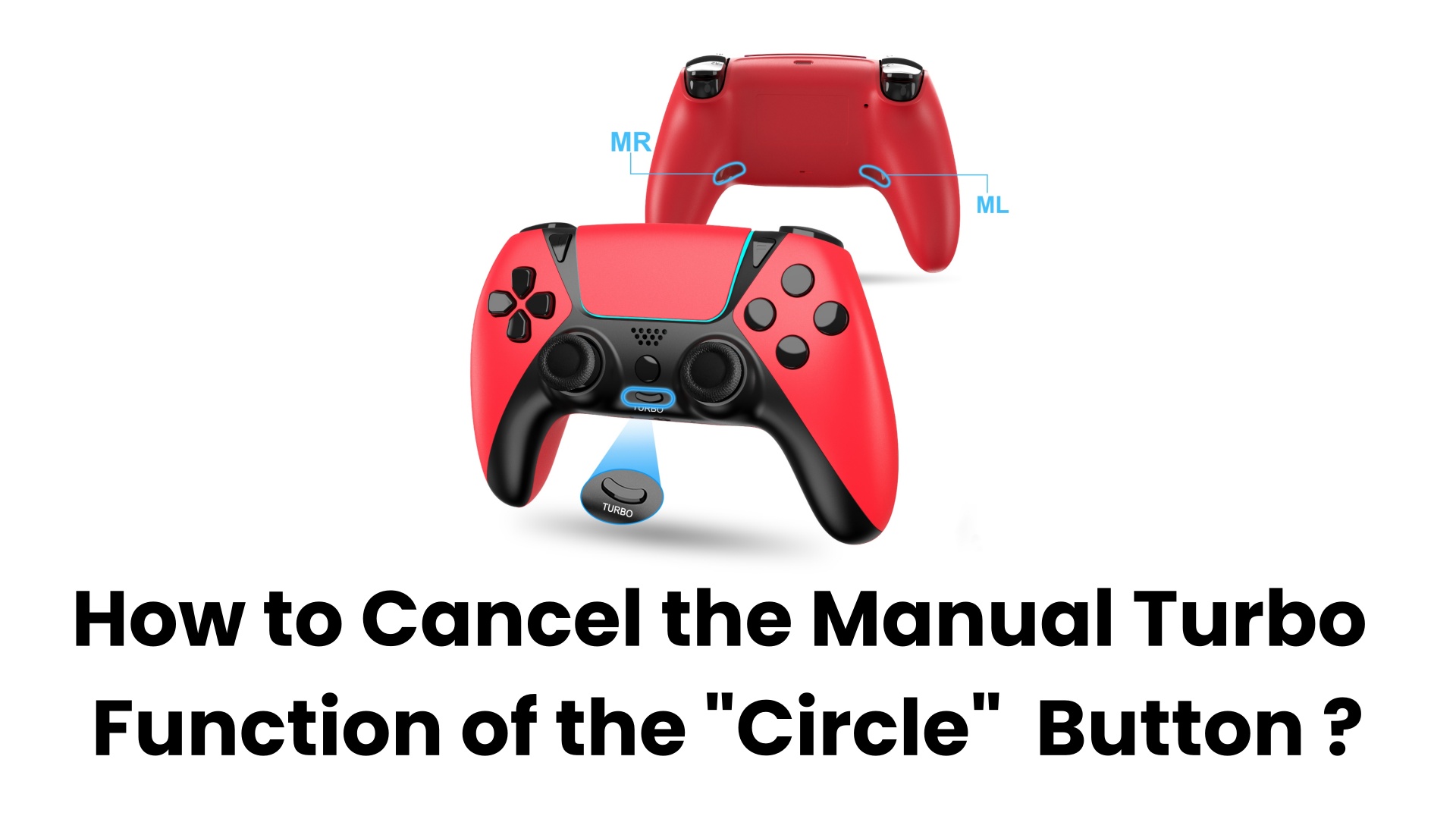

Cancel Manual Turbo Function

1. Hold the "Turbo" button, don t release it, and then press the target function button. The RGB light will flash.
2. Repeat: Hold the "Turbo" button again, don t release it, and then press the target function button. The RGB light will flash.

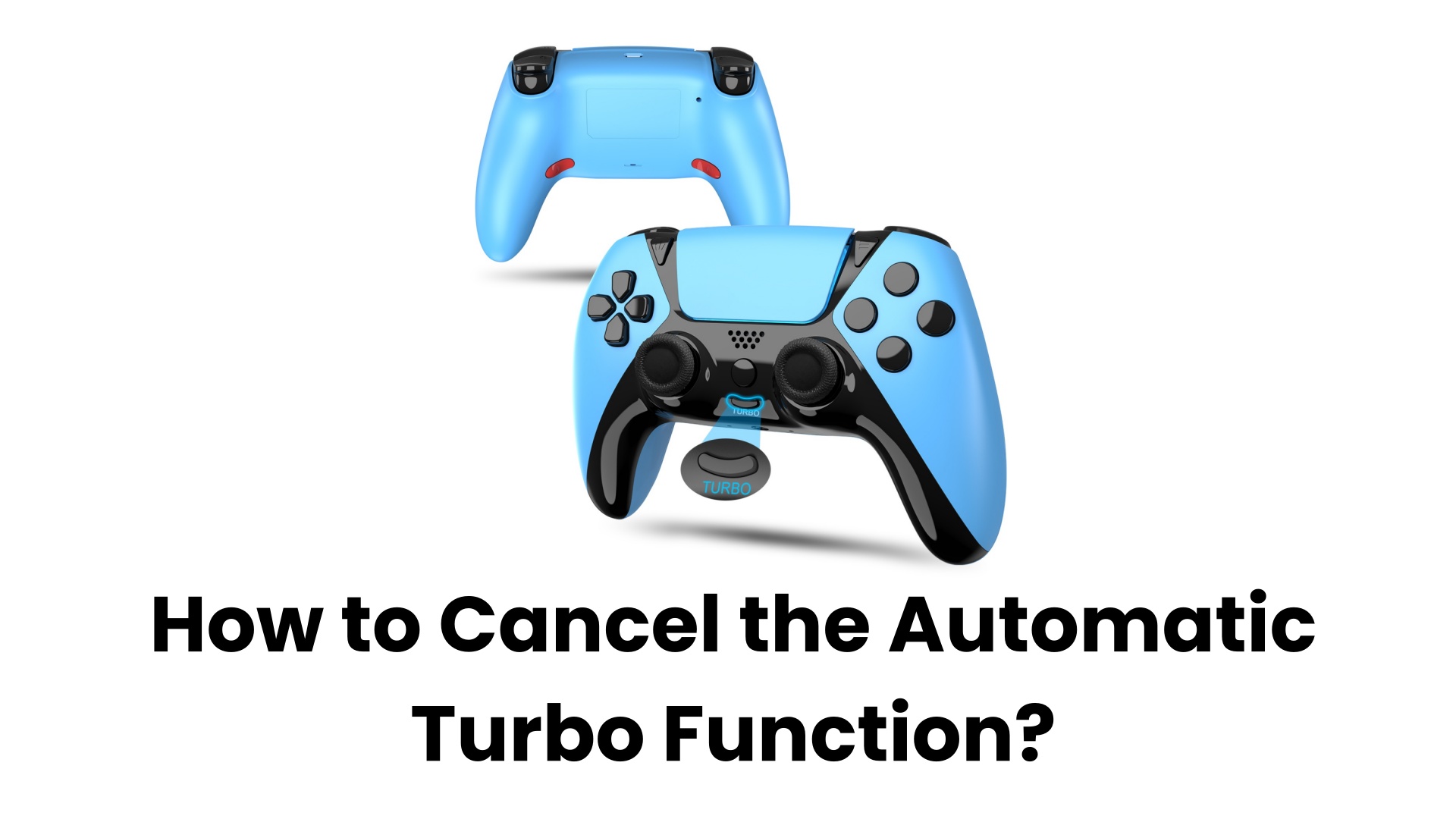

Cancel Automatic Turbo Function

Hold the "Turbo" button, don't release it, and then press the target function button. The RGB light will flash.

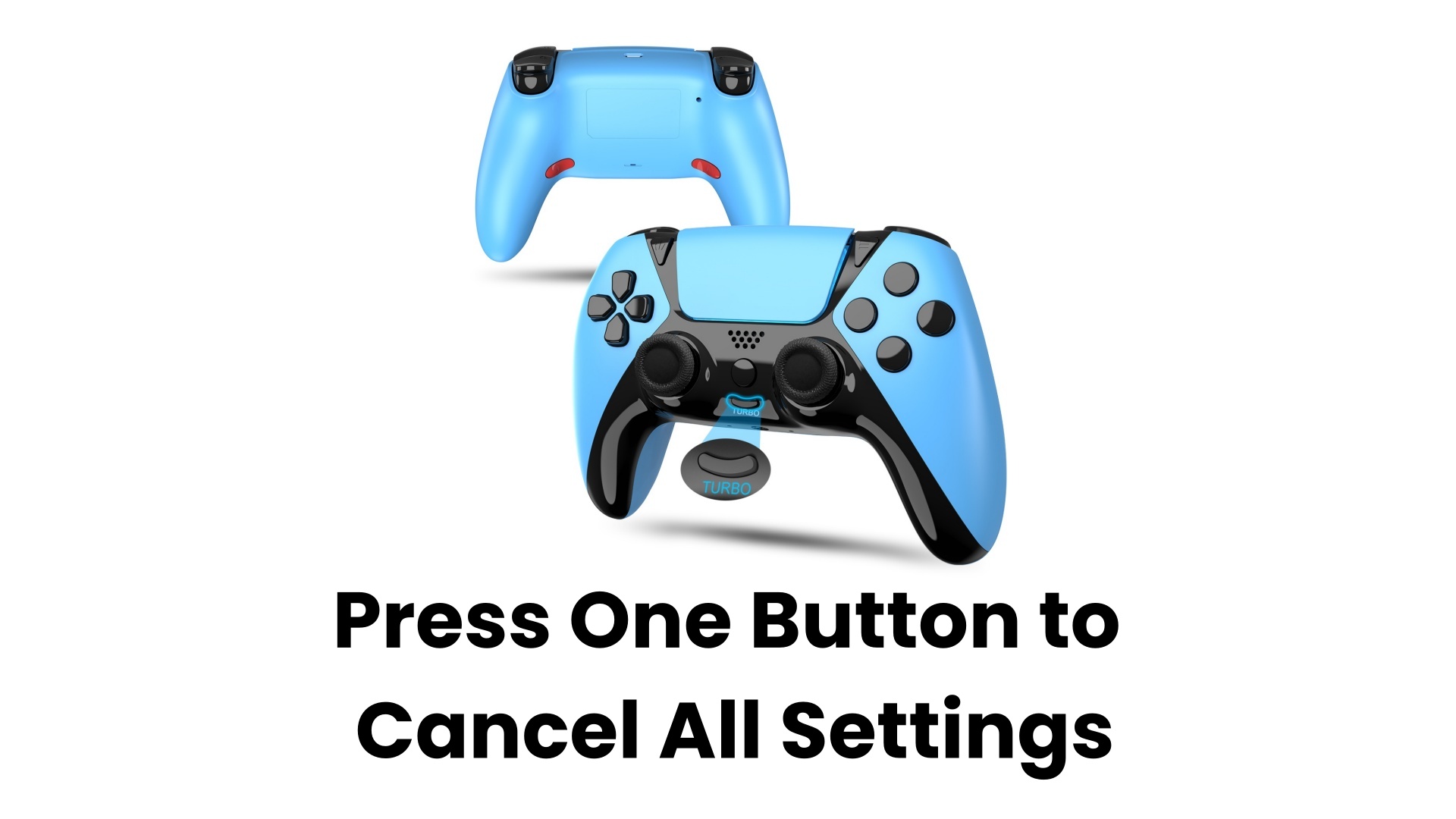

Press One Button to Cancel All Settings

This step allows you to cancel all previously set turbo and programming functions. To do this:

Long press the "Turbo" button for about 8 seconds until the RGB light flashes.

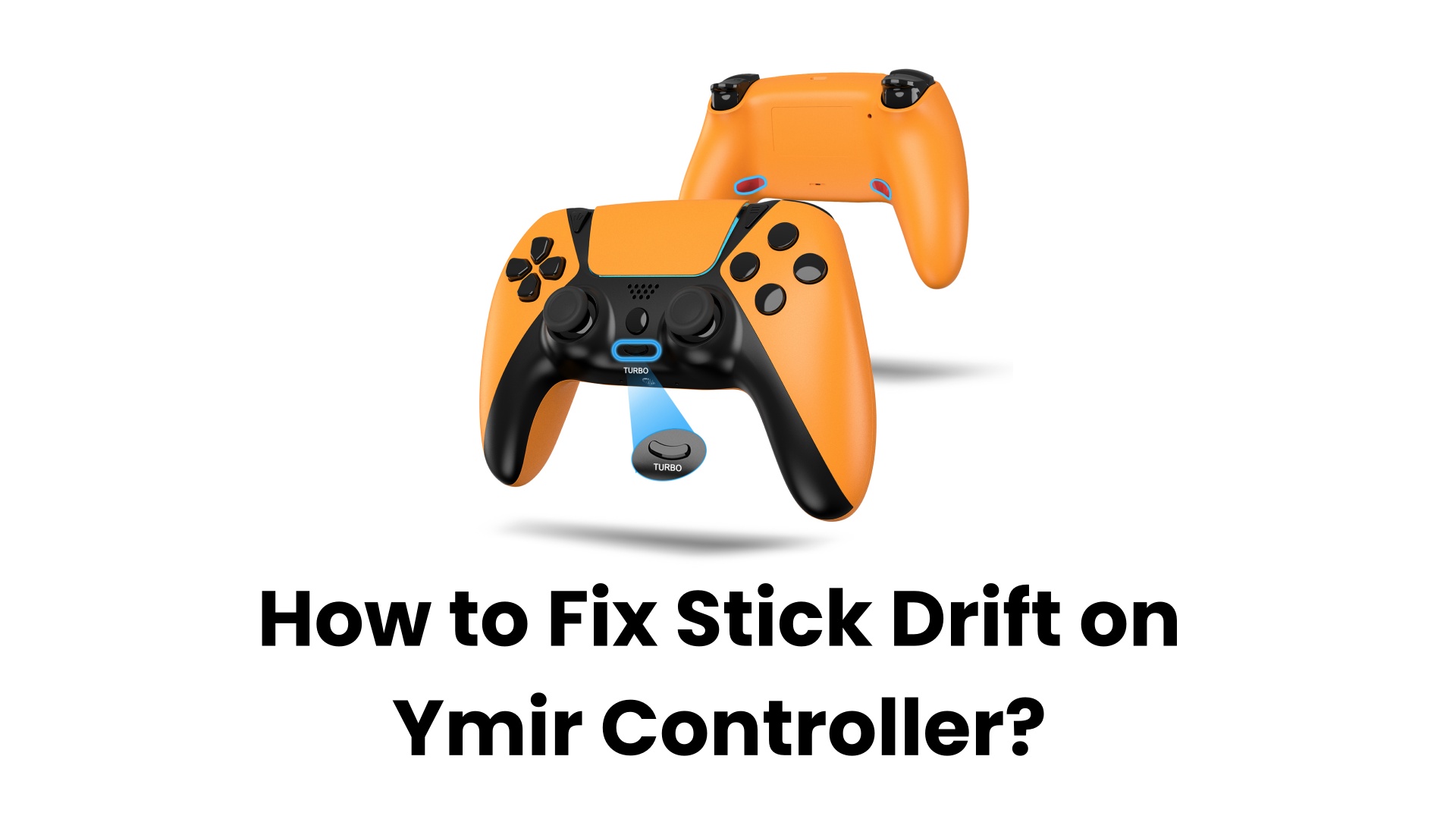

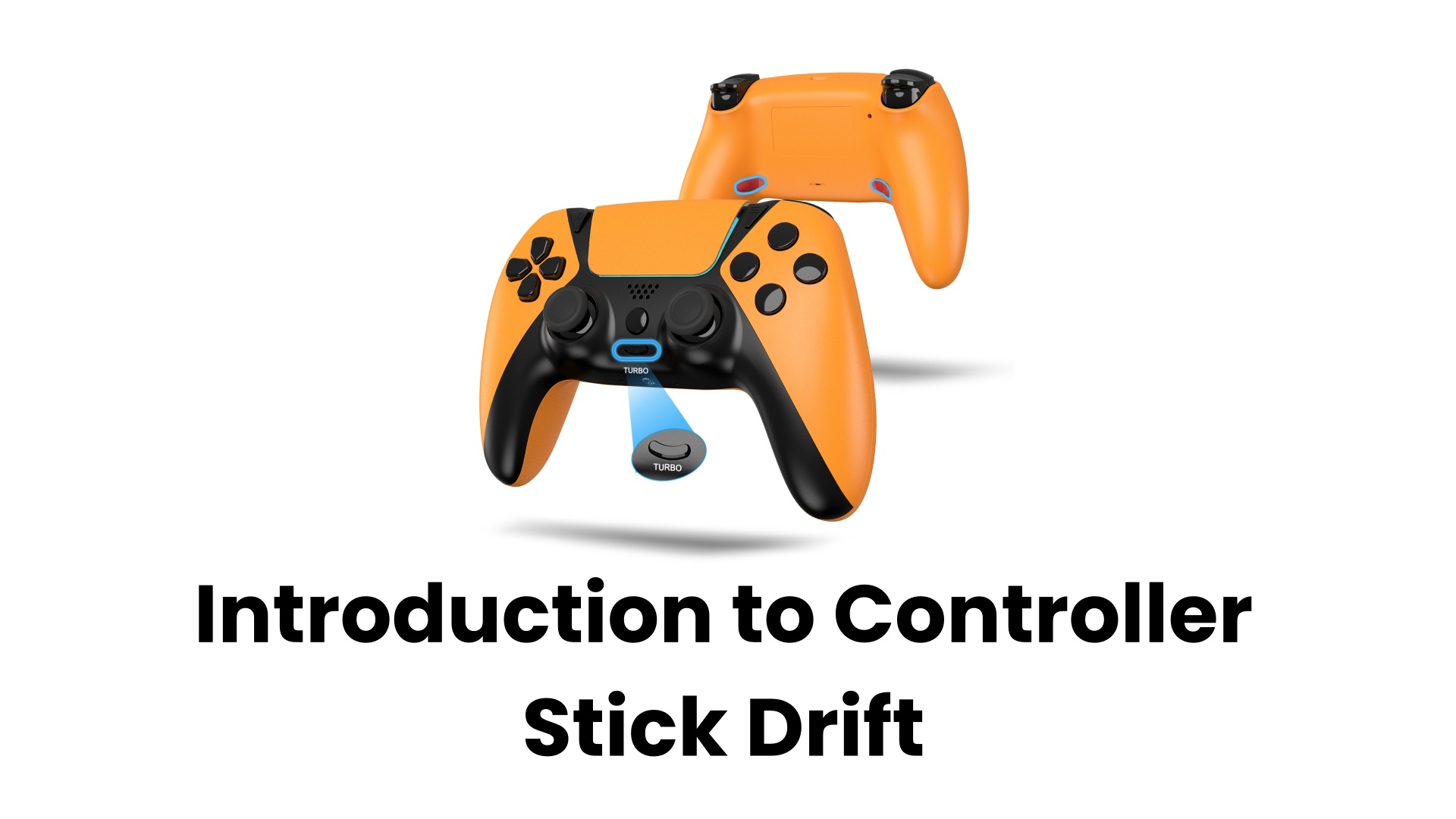

Calibrate Controller Joysticks

If your joystick moves in a certain direction, even when you're not touching it. The following method can help you automatically calibrate the joystick and fix your drift issue:
1. Make sure your controller is powered on.
2. Press and hold the L1, R1, Left, and Circle buttons all at the same time for 5 seconds.
3. After that, open your testing software, if the joystick successfully returns to the center point, the calibration was successful.

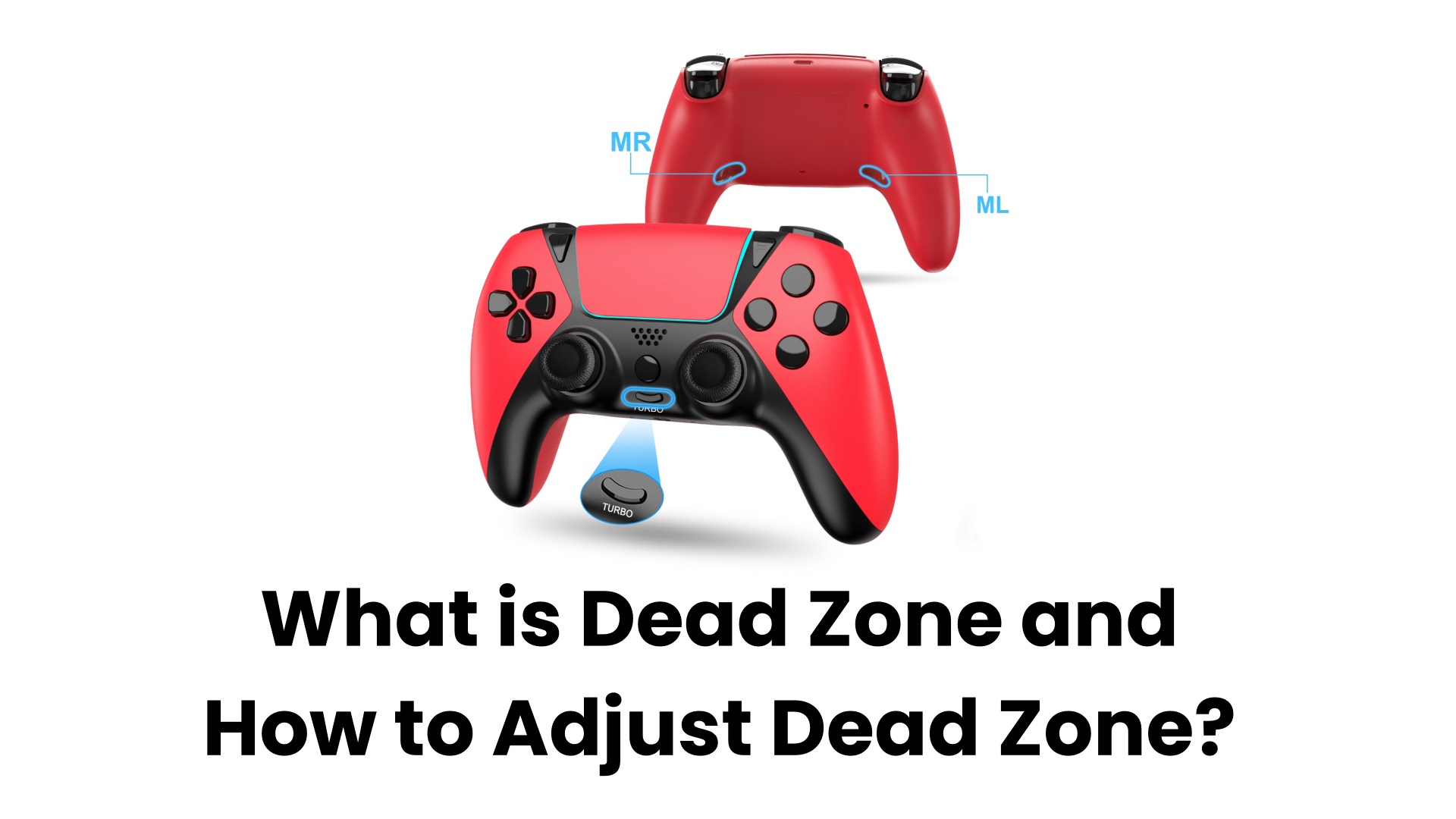

How to Adjust Joystick Dead Zones?

1. Download and install "DS4Windows" on your PC.
2. Open "DS4Windows" and connect the controller to the PC. The software will automatically recognize it.
3. Click on "Edit", and then select "Controller Readings".
4. Click on "Axis Config", find "LS" to start to adjust the left joystick.

5. Locate "Dead Zone". You can enter a value manually or use the button to adjust the dead zone. Higher values mean larger dead zones (the maximum value is 1).

6. Then scroll down to adjust the right joystick in the same way.
7. Once you’ve made your adjustments, click "Apply" and "Save" to save them.

8. After setting the dead zones, enter your game to test the new settings. If it doesn’t feel right, return to "DS4Windows" and repeat the steps until you find the best configuration for you!

Vibration Settings

How to Adjust Vibration on Ymir Controller?

Before start, download and install "DS4Windows" on your PC. This tool is used to manage your PlayStation controllers.
1. Open "DS4Windows" and connect your Ymir controller to the PC, click "Start" and you will see the connected controller.
2. Click on "Edit".
3. Click on "Other", here you can see the "Rumble" settings.
4. Adjust the rumble values. If you want to decrease the vibration intensity, lower the value; if you want to increase it, raise the value.

5. Test vibration. There are two test buttons on the right, click them to experience how the adjustments feel in real time.

6. Once you're satisfied with the vibration settings, click the "Save" to ensure all changes are recorded.

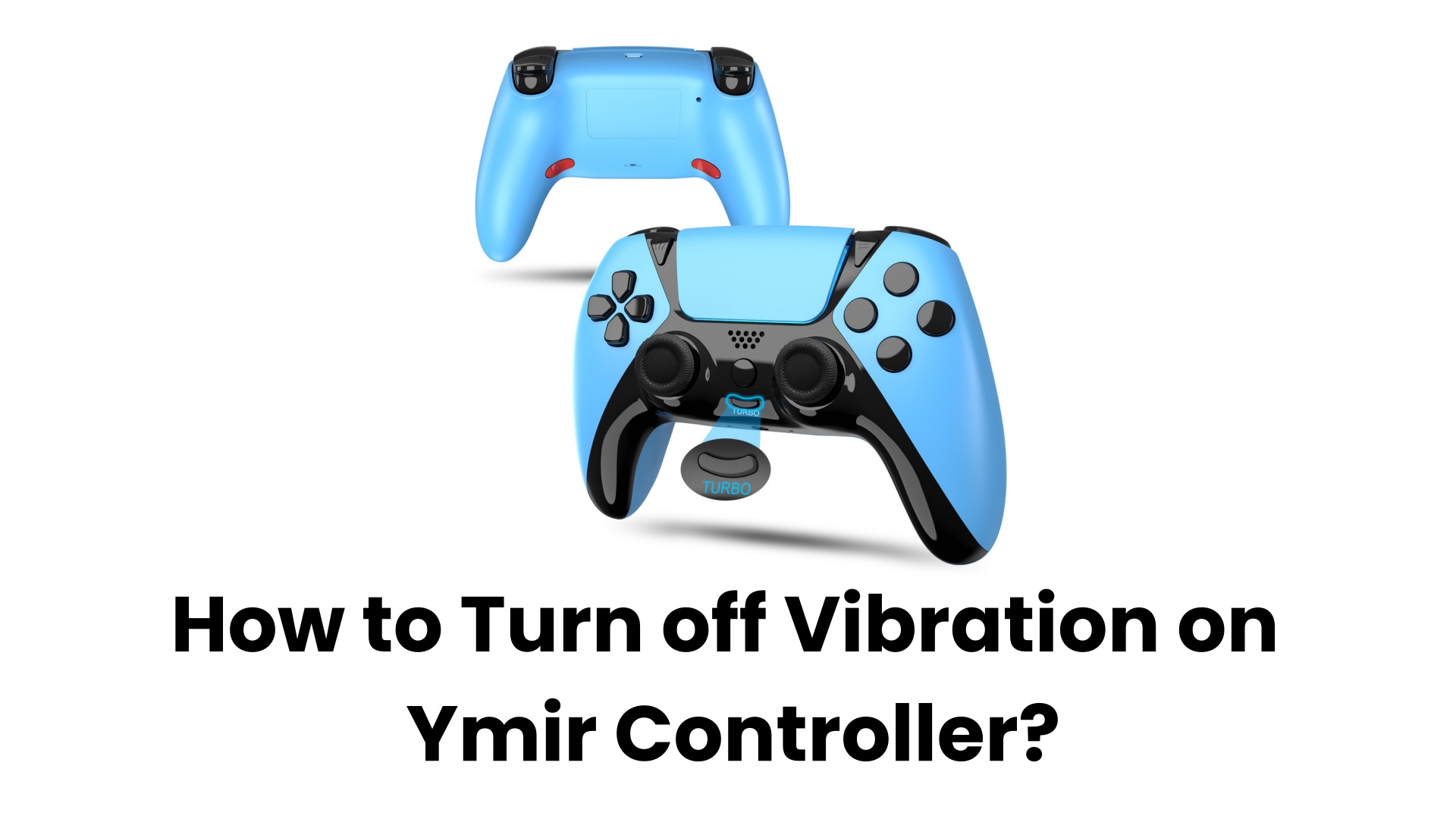

How to Turn off Vibration on Ymir Controller?

Turn off Vibration on a PS4 Console

1. Go to the "Settings".
2. Scroll down to "Devices".
3. Go down to "Controllers".
4. Turn off "Enable Vibration".

Turn off Vibration on a PC

1. Download and open the "DS4 Windows" .
2. Connect the controller to your PC and wait for it to be recognized.
3. Click "Edit", then click "Other".
4. Find the "Rumble" option, in here you can adjust the vibration intensity, set it to 0.
5. Click "Apply" and then "Save" to save the changes.
